TPM-SERIES/4-in-1

Contact for Price & Leasing Options

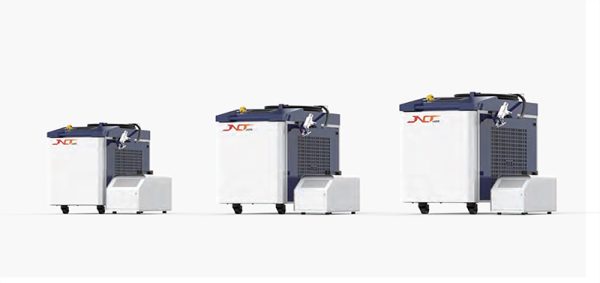

4-in-1 Laser Machine

SKU: TPM-SERIES/4-in-1 Category:

Description

Features
Compact integration of functions: Compactly integrating laser welding, laser cutting,
laser cleaning, and weld channel cleaning functions into a single unit, this machine
realizes multi-purpose operations at a relatively low cost, providing a practical solution
for small businesses and users with limited budgets. Despite the relatively low
configuration, the individual functions collaborate with each other to fulfill basic
industrial processing needs, avoiding the hassle and expense of purchasing multiple
units with a single function.

Technical parameters

Laser power
Power adjustment range
Welding thickness
Cleaning width
Cutting thickness
Center wavelength
Fiber length
Machine size
Machine weight
1500W
10-100%
1-3mm
0-80mm
1-3mm
1080±3nm
10/15m
880*530*760mm
100KG
Laser power
Power adjustment range
Welding thickness
Cleaning width
Cutting thickness
Center wavelength
Fiber length
Machine size
Machine weight
2000W
10-100%
1-4mm
0-80mm
1-4mm
1080±3nm
10/15m
1080*580*810mm
120KG
Laser power
Power adjustment range
Welding thickness
Cleaning width
Cutting thickness
Center wavelength
Fiber length
Machine size
Machine weight
3000W
10-100%
1-6mm
0-80mm
1-5mm
1080±3nm
20m
1120*660*960mm
150KG
